Intel “Nova Lake-S” Uses 2L-ILM Socket for Better CPU Cooler Contact

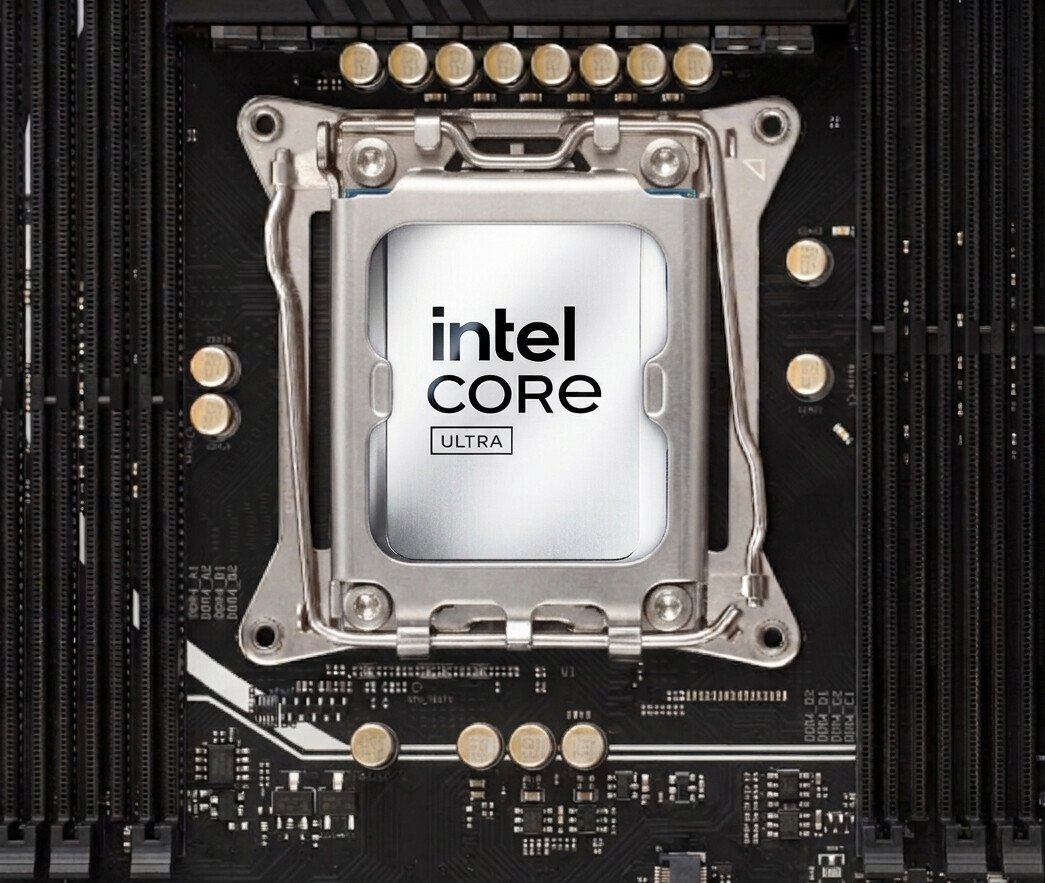

In the latest series of leaks about Intel’s upcoming “Nova Lake” chips, we learn that the desktop “Nova Lake-S” designs will feature a new socket mounting and independent loading mechanism (ILM). According to exclusive information from VideoCardz, the NVL-S desktop designs on the LGA-1954 socket will include a new 2L-ILM socket mechanism to improve contact with CPU coolers. Given that Intel’s upcoming NVL-S desktop processors will have up to 52 high-frequency, power-hungry cores, a better mounting mechanism is definitely needed. This 2L-ILM is a two-level independent loading mechanism, using two levers on each side of the CPU to secure it into the LGA-1954 socket. Applying pressure on both sides of the socket ensures improved flatness while the locking mechanism does its job.

Intel categorizes its desktop sockets in various forms. One of the most basic is the Default-ILM, along with the RL-ILM. As seen with “Arrow Lake,” Intel’s motherboards divide the socket locking mechanism into the ILM and RL-ILM designs, applied depending on the sector. For the lower-end sector, the Default-ILM socket is used, while the RL-ILM is applied to higher-end overclocking motherboards, providing better pressure and ensuring a flatter surface contact for a cooler. Noctua and Cooler Master already differentiate these two in their CPU coolers, but the mounting hardware is generally the same for both. The RL-ILM is simply a better design for overclocking due to the improved surface contact it provides.

Some readers may recall that Intel used its 2L-ILM on the older LGA 2011-3 HEDT socket back in the era of X99 Express motherboards, more than a decade ago in 2014. This HEDT platform featured 2011 LGA pins, which is close to the 1954 LGA pins we see with NVL-S. It seems that having close to 2,000 pins in the LGA socket requires two levers due to the pressure needed for the application of the CPU, as the surface area needs a stronger hold to ensure that every CPU contact pin on the package is electrically touching the pins on the socket it is mounted on.
