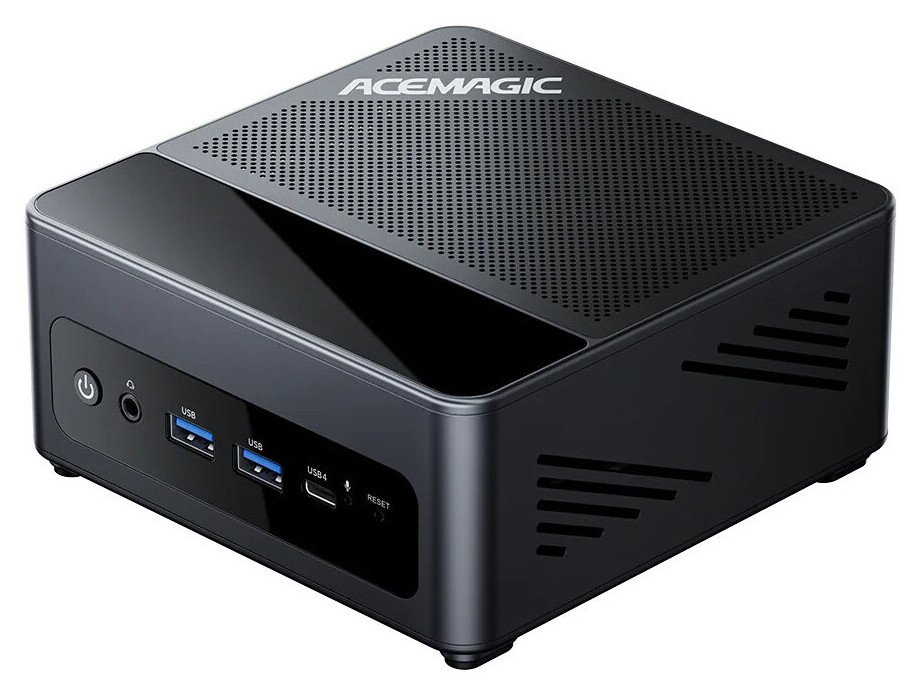

Acemagic Introduces F5A Mini PC with Ryzen AI 9 HX 470 and OCuLink

Acemagic has launched the F5A, a mini PC built around AMD’s Ryzen AI 9 HX 470, a 12-core, 24-thread chip combining Zen 5 and Zen 5c cores with boost clocks up to 5.2 GHz. Graphics come from the integrated Radeon 890M (RDNA 3.5, 16 compute units), and the XDNA2 NPU is rated at 55 TOPS, pushing total platform AI performance to up to 86 TOPS. Memory is fixed at 32 GB of LPDDR5X-8000, paired with a PCIe 4.0 NVMe SSD. Storage expansion is a strong point since Acemagic F5A mini PC features three M.2 2280 slots giving you up to 12 TB of total capacity. Networking covers Wi-Fi 7, Bluetooth 5.4, and dual 2.5 GbE LAN ports.

For a system this compact (130 x 132 x 62 mm) the connectivity is solid. You get HDMI 2.1, DisplayPort 2.1, and dual USB4 ports with DisplayPort output and 40 Gbps transfer speeds, plus an OCuLink port for eGPU or high-speed storage expansion. Multiple 8K display outputs are supported. Cooling is handled by a dual-fan setup with a vapor chamber, rated up to 65 W. The F5A is available as a barebones configuration at $759 or as a preconfigured 32 GB / 1 TB model at $1,299, however, availability seems limited at launch.

Specifications

• CPU
  • AMD Ryzen AI 9 HX 470
  • 12 Cores / 24 Threads
  • Architecture: 4× Zen 5 + 8× Zen 5c
  • Base Clock: 2.0 GHz
  • Max Boost Clock: Up to 5.2 GHz
  • Cache: 12 MB L2 + 24 MB L3
  • Process Technology: TSMC 4 nm FinFET
• GPU
  • Integrated AMD Radeon 890M Graphics (RDNA 3.5 Architecture)
  • 16 Compute Units
  • Up to 3.1 GHz
• NPU
  • Integrated AMD Ryzen AI Engine (XDNA2 architecture)
  • Up to 55 TOPS NPU AI performance
  • Total AI Performance (CPU+GPU+NPU): Up to 86 TOPS

Memory & Storage

• Memory
  • 32 GB LPDDR5X 8000 MT/s (Onboard)
  • Non-upgradable
• Storage
  • Pre-installed 1 TB M.2 2280 NVMe PCIe 4.0 x4 SSD
  • 3 × M.2 2280 NVMe Slots (1x PCIe 4.0 x4 Slot, 2x PCIe 4.0xx2 Slots)
  • Supports PCIe 4.0×4 NVMe SSD
  • SATA M.2 SSD Not Supported
  • Up to 4 TB per Slot (12 TB Total)

Wireless ConnectivityOutput

• Video
  • HDMI 2.1 x1 (8K@60 Hz)
  • 2x USB4 Type-C ports, supporting data transfer speeds of up to 40 Gbps / DisplayPort 1.4 (8K at 60 Hz) / Supports 100 W Power Delivery input and 15 W Power Delivery output
  • DP2.1 x1 (8K@60 Hz)
• Audio

Ports & Buttons

• 10/100/1000 Mbps/2.5 Gbps Auto-negotiating RJ45 Gigabit Ethernet Ports x2
• USB3.2 Gen 2 Type-A Port x2 (10 Gbps)
• USB3.2 Gen 2 Type-A Port x1 (10 Gbps)
• USB2.0 Type-A Port×1
• USB4 Type-C x2 (Support DP1.4, 8K@60 Hz, up to 40 Gbps data transfer, PD 15xW output, PD100W input)
• DC IN x1
• HDMI 2.1 x1
• DP2.1 x1
• 3.5 mm Audio Jack x1
• Power Button x1
• OCuLink Port x1

Base Configuration

• Power
  • DC 19 V-6,3 A, 5.5 x 2.5 mm DC connector
• System
• Dimensions

Cooling System

• Dual-fan cooling (CPU fan + system fan) + VC heat spreader, delivering up to 65 W of performance
