TLRx728, BD728x op amps series available from Rutronik

Rutronik highlights they address the requirements for a combination of low input offset voltage, low noise and high slew rate.

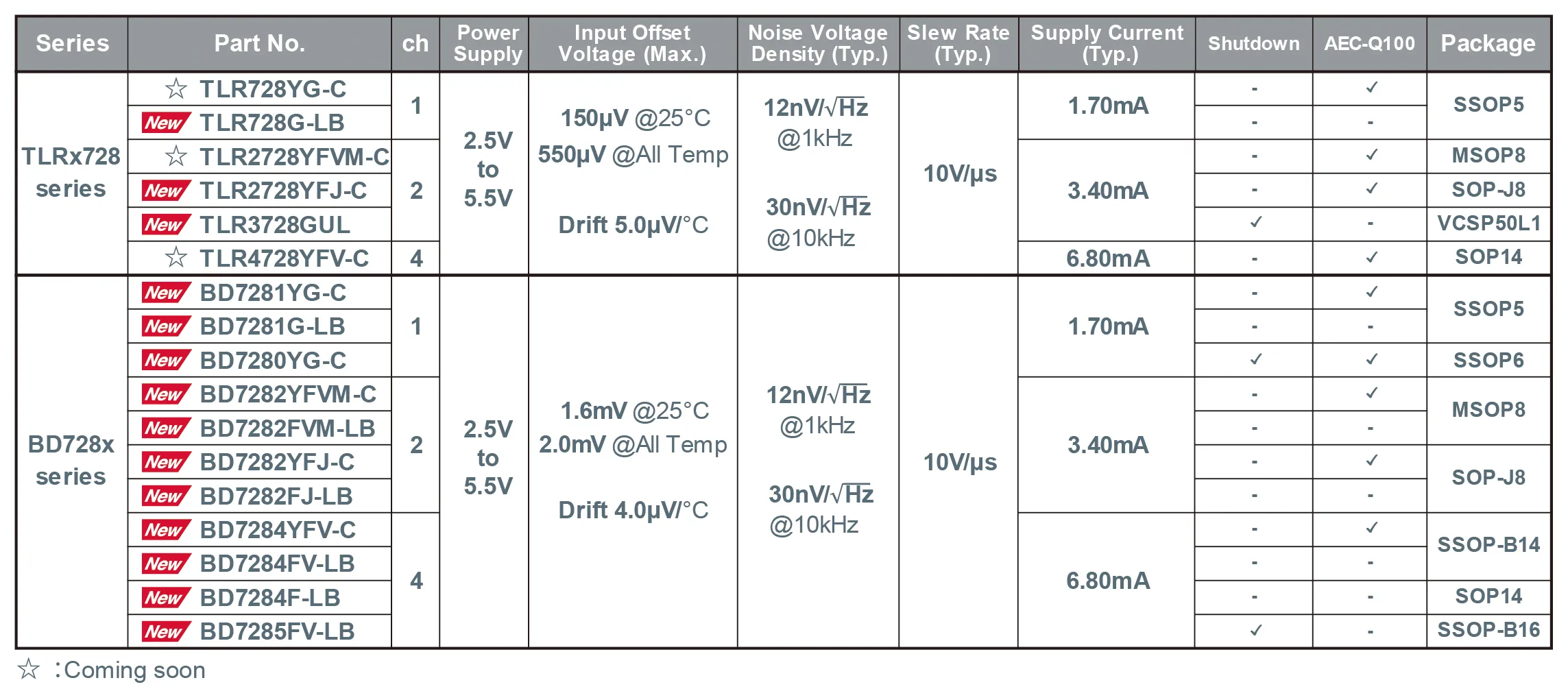

For example, the TLRx728 series features an input offset voltage of typically 150 µV and the BD728x series offers 1.6 mV (typ.). Both series achieve a noise voltage density of 12 nV / √Hz at 1 kHz and a slew rate of 10 V/µs, enabling accurate and fast signal processing.

Possible applications range from sensor signal processing and motor control to current sensing and power supply monitoring.

TLRx728  features

• Low input offset voltage (down to 150 µV typ.) for high precision
• Low noise (12 nV / √Hz at 1 kHz)
• High slew rate (10 V / µs) for fast signal response
• Rail-to-rail input and output for maximum dynamic range
• Available in single-, dual- and quad-channel configurations
• Wide range of packages for flexible design integration

More information on the 17 new components can be found on the Rutronik website.
