BM500A Digital Insulation Resistance Tester, 250V/500V/1000V Megohmmeter with LCD Display, 0.001-1999MΩ Range, ABS Material, with Test Clips and Stand

Price: $23.58
(as of Mar 03, 2026 01:54:50 UTC – Details)

Product description

Specification

Item Type: Resistance Tester Model: BM500A Material: ABS Power Supply: 1 x 6F22 9V (Battery Not Included) Application: Electricity numerical test Automatic Range: Overload display “1” Display Mode: LCD display Maximum Display: 1999 Sampling Rate: 2.5 times/sec Working Environment: 0°C-40°C, less than 75%RH Storage Environment: -10°C-60°C, less than 80%RH

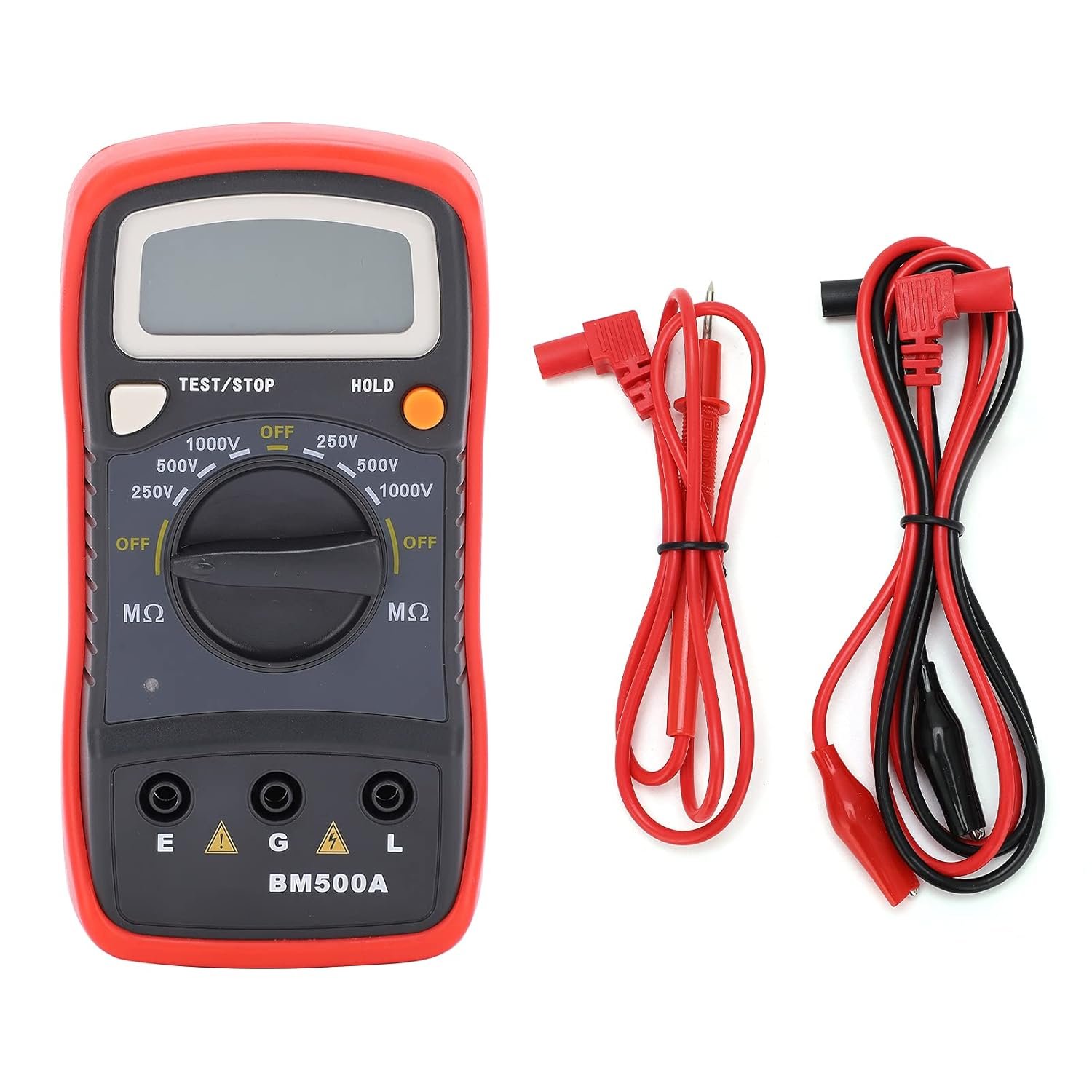

Rated Voltage 250V/500V/1000V Open Circuit Voltage 90%~110% of rated voltage Measuring Range 0.001~1999MΩ Minimum Resolution 0.001MΩ Accuracy 250V: About 500kΩ; 500V: About 1.5MΩ; 1000V: About 5MΩ Measure the achievable resistance value to maintain the lower limit of the rated voltage: Not less than 1.5mA How to Use: 1. Turn the knob to the corresponding function according to the measurement needs 2. Connect the electrode of the measured object to the corresponding socket of this instrument 3. When testing the cable, connect the jack G to the protective ring Package List: 1 x Tester (Battery Not Included); 2 x Clip; 1 x Test Lead; 1 x Manual

Wider test voltage: Output test voltage can be selected 250V/500V/1000V. This insulation tester is equipped with anti-slip and anti-drop protective case with insulation.
Accurate measurement: Digital megohm meter sampling rate can reach 2.3 times/sec.
Wide Application: The insulation tester is widely used to measure the insulation of electrical equipment and insulation materials, such as motors, cables, switches, appliances, etc. It can also be used for the maintenance, testing and verification of various electrical equipment.

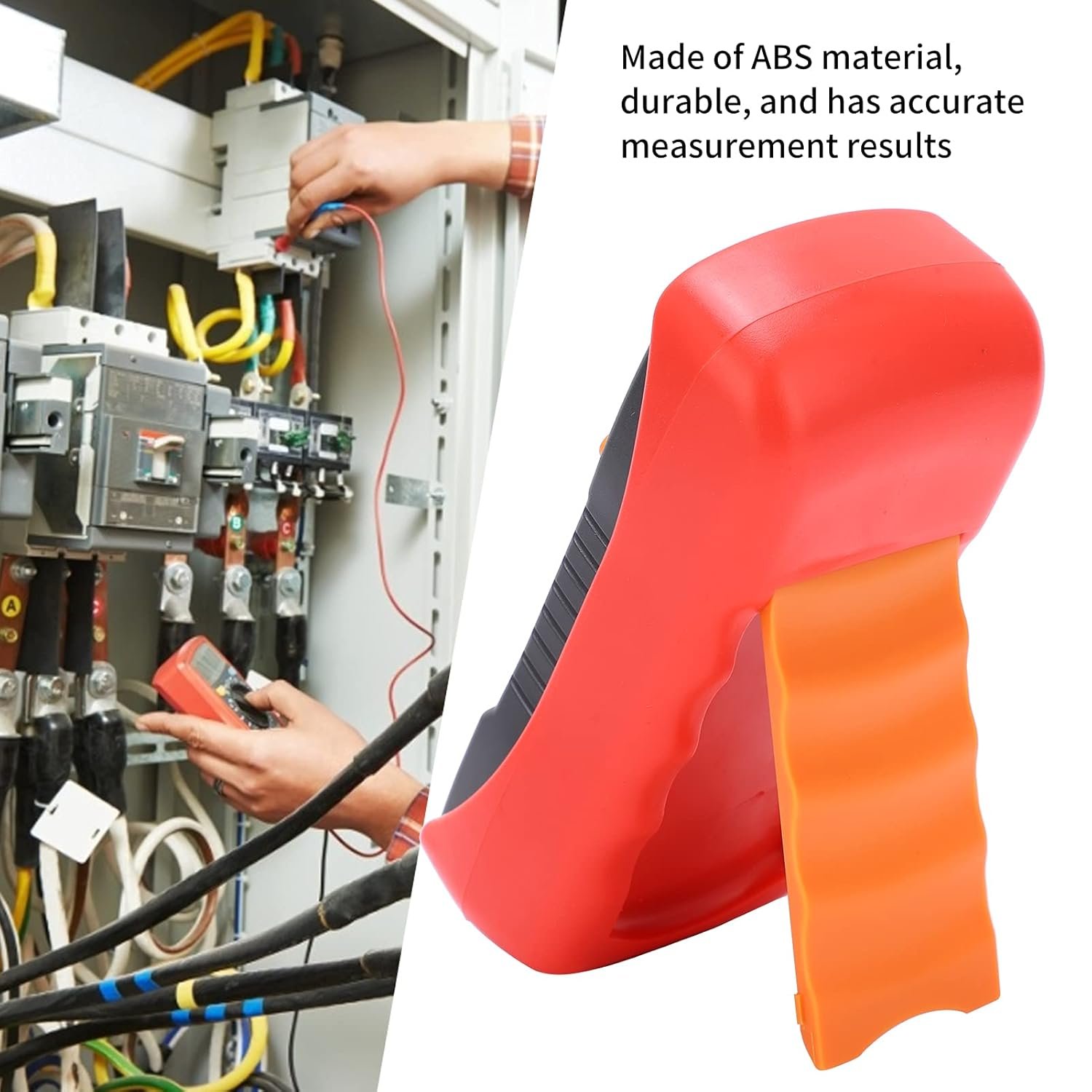

With stand: Digital insulation tester comes with a stand on the back, it can easily stand on the table for you to observe the data
High insulation tester: Digital megohmmeter, measuring high insulation resistance,measuring range is 0.001~1999MΩ, the maximum display is 1999.
