GNSS wideband LNA with noise figure of 0.65 dB

The device operates across a frequency range from 1164 MHz to 1610 MHz. It has a high gain of up to 17.5 dB in the L1 band and 18.0 dB in the L2/L5/L6 band, a remarkably low noise figure of just 0.65 dB. It features very high linearity with only 12 mA current consumption at 3.3 V, while supporting a wide supply voltage range of 1.5 V to 5.5 V.

This LNA is suitable for applications requiring high jamming immunity and high input power tolerance in the same bands. Furthermore, it is designed for a wide range of applications, including GNSS modules, active antennas, tracking devices and so on.

With a wide operating temperature range of -40 to +105 °C, the NT1199 is well-suited for various applications, where temperature variations can be significant, it provides robust performance even in the most demanding environments.

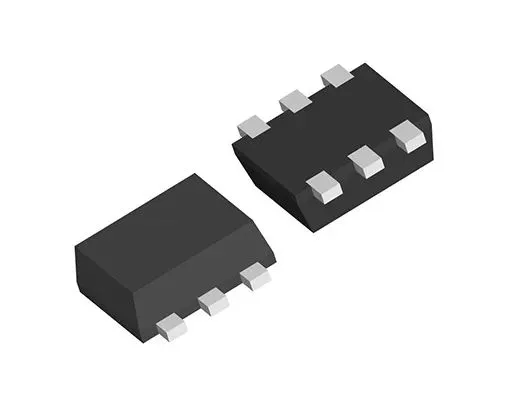

The new LNA features a small SON-6-HE package size of just 1.6 × 1.6 mm typ., with a thickness of 0.55 mm.

For additional technical details, please refer to the datasheet or visit our official website, also view our list of qualified local and online distribution partners for purchasing information.

Specifications NT1199HE:

·       Frequency Range: 1164 MHz to 1610 MHz

·       Supply Voltage: 1.5 V to 5.5 V (3.3 V typ.)

·       Current Consumption: 12 mA typ.

·       Gain: 17.5 dB typ. @ L1 band, 18.0 dB typ. @ L2/L5/L6 band

·       NF: 0.65 dB typ.

·       P-1dB(IN): +1.5 dBm typ. @ L1 band, 0 dBm typ.@ L5/L2/L6 band

·       IIP3: +1 dBm typ.

·       Operating Temperature Range: -40 to +105 °C

·       RoHS Compliant and Halogen Free, MSL1

·       Package NT1199HE: SON-6-HE (1.6 × 1.6 x 0.55 mm)

·       Datasheet NT1199HE: Consumer version
