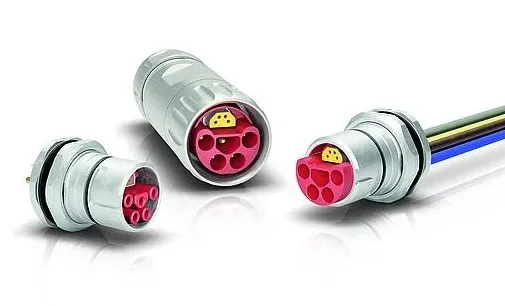

B23 connector combines power supply and data

The series combines power supply and shielded data transmission in one connector. It enables Ethernet transmission rates of up to 100 Mbit/s.

Possible application areas include servo motors, robotics, manufacturing systems and, more generally, decentralised automation systems.

“Our new B23 connector combines power supply and data transmission in a unique, compact system,” said Binder’s Head of Product Management, Philipp Zuber. “It is therefore a key building block for the further establishment of One Cable Automation”.

“With our field-attachable version in particular, we are setting new standards in terms of efficiency and flexibility in electrical connection technology.”

B23

B23 features highlighted by Binder include:

• Power transmission: up to 28 A at up to 630 V
• Data transmission: shielded Ethernet / EtherCAT according to Cat5, up to 100 Mbit/s
• Fast installation: bayonet quick-locking system
• Easy assembly: screw clamp termination technology for field use
• Standardisation: IEC 61076-2-118 for manufacturer-independent compatibility

There are currently six connector variants within the B23 series. Detailed information for each of them is on the company website.

Binder

The Binder group includes the headquarters in Neckarsulm, Germany. With offices in Nottingham in the UK, the company employs around 2,000 people worldwide.

Image: Binder
